How To Measure Folding Cartons and Mailers

Getting the dimensions right is important when matching a folding carton or mailer to a product, replacing an existing package, or comparing carton styles.

Unlike a standard corrugated shipping box, folding cartons and some mailer styles are often easiest to measure while opened flat. The score lines show where the carton folds and help identify the finished dimensions.

How Folding Carton Dimensions Are Listed

Folding cartons are commonly described using three dimensions:

• Length (L)
• Width (W)
• Depth (D)

The dimensions are typically written as:

Length × Width × Depth

These dimensions describe the finished interior carton, but the exact orientation can vary by carton style. When replacing an existing package, compare both the dimensions and the style rather than relying on the numbers alone.

How to Measure a Folding Carton

If possible, carefully open the carton at the manufacturer's glue joint and lay the blank flat.

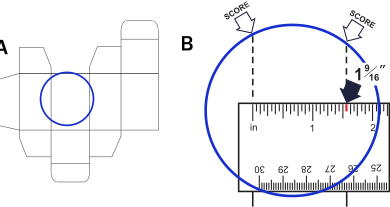

Measure from the center of one score line to the center of the next score line. This helps account for the folds that create the finished carton panels.

For many folding-carton styles:

• Length is the longer panel dimension across the carton opening.
• Width is the shorter panel dimension across the opening.
• Depth is the distance from the top of the carton to the bottom when assembled.

Because folding-carton styles can vary, use the score layout and finished carton orientation to confirm which panel represents each dimension.

For close-fitting packaging, measure carefully and consistently. Small dimensional differences can matter when the product fit is tight.

Why Measure From Score Line to Score Line?

The score lines define where the paperboard or corrugated material folds to create the finished carton.

Measuring from score center to score center provides a better representation of the finished panel dimension than measuring from the outside edges of the flat blank.

The blank itself also includes flaps, glue areas, and closure panels that are not part of the finished usable interior dimensions.

How to Measure a Flat Mailer

Flat mailers are commonly described with two primary dimensions:

Width × Depth

• Width is the dimension across the opening.
• Depth is the distance from the opening toward the bottom of the mailer.

If the mailer has a flap or closure, do not automatically include the flap in the usable depth. The listed dimensions should represent the interior area available to the product.

Common Measuring Mistakes

• Measuring the entire flat blank: Flaps and glue tabs are not part of the finished usable dimensions.
• Measuring edge to edge instead of score to score: This can create small dimensional errors.
• Including the closure flap in usable depth: The closure area may not be available to the product.
• Assuming every carton style uses the same orientation: Confirm the finished package style before assigning length, width, and depth.
• Ignoring product thickness: A flat product may still require additional depth or clearance once inserted.

The Bottom Line

For folding cartons, measure the finished panel dimensions using the score lines as your guide. For flat mailers, focus on the usable width across the opening and the usable depth below the closure area.

If you are replacing an existing package, keep the carton or mailer style in mind along with the dimensions. Two packages with similar measurements may still fit the product differently because of their construction and closure design.

Need Help Measuring a Carton or Mailer?

Contact Packaging HERO if you need help identifying the dimensions or style of an existing folding carton or mailer.
