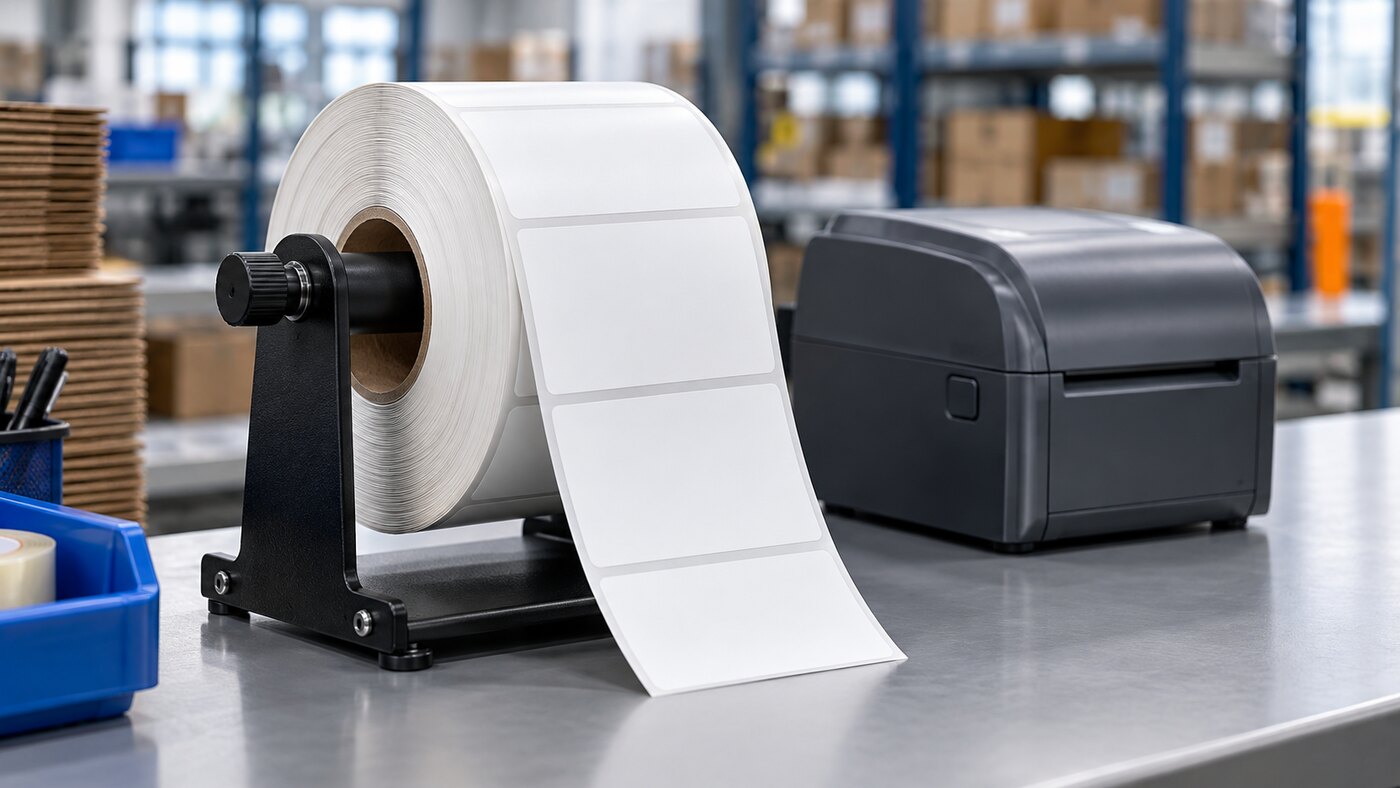

Roll Label Specification Guide
A roll label is more than a width, length, and quantity. The finished label must work with the surface, environment, printer or applicator, sensing method, roll holder, artwork, and operating process. Use this guide to document those requirements before requesting samples, pricing, or production.
Five Questions a Complete Label Specification Must Answer
Use these questions to keep the specification tied to the application instead of choosing a label by dimensions alone.
1
What must the label do?
2
Where and how will it be applied?
3
What equipment will use the roll?
4
What conditions must it withstand?
5
How will performance be approved?
Start with the Label Application
Begin with the operating requirement, not a material name. A label used for short-term carton identification has different demands from one exposed to moisture, abrasion, chemicals, freezing conditions, sunlight, repeated handling, or long service life. Document what information the label carries, who or what applies it, and how long it must remain readable and attached.
Product and Surface
Identify the actual surface: corrugated, coated paperboard, rigid plastic, flexible film, glass, metal, wood, or another substrate. Record whether it is smooth, rough, curved, dusty, damp, chilled, oily, painted, or low-surface-energy. The container material alone does not describe the bonding challenge.
Process and Environment
Record the application temperature, service-temperature range, indoor or outdoor exposure, expected label life, cleaning or chemical contact, and handling conditions. Note whether labels are applied by hand, printed on demand, dispensed, or applied automatically—and at what operating speed.
Anatomy of a Roll Label Specification
The label, finished roll, and equipment requirements must be defined as one system.
1. Label and Web
Across-web width
Feed direction
Finished size, pitch, gap, margins, shape, slits, and perforations
2. Finished Roll
CORE
Core inside diameter and width
Maximum roll outside diameter and weight
Face-in or face-out and leading edge
3. Equipment Fit
Load: core, roll diameter, roll weight, and web width
Register: gap, black mark, notch, hole, or continuous media
Run: print method, ribbon, unwind, speed, and dispensing requirements
This visual identifies the specification fields to confirm; it is not a dimensioned production drawing.
Define the Label Size and Web Layout
Use a dimensioned drawing whenever orientation, die shape, perforations, multiple lanes, or automatic application matters. Terms such as “horizontal” and “vertical” can be interpreted differently once a label is wound onto a roll.
Finished label
State width across the web and length in the feed direction. Include the shape, corner radius, and dimensional tolerances when they affect fit or dispensing.
Web and spacing
Define total web width, side margins, label pitch, the gap between labels, and the number of labels across the web. These measurements affect tracking, sensing, and applicator compatibility.
Slits and perforations
A slit is a continuous cut used to divide a web or lane. A perforation is a repeated cut-and-tie pattern intended to tear. State the location and whether the cut passes through the facestock, liner, or both.
Specify the Finished Roll
Roll construction must match the exact printer, dispenser, or applicator—not merely the general equipment type. Confirm requirements in the equipment documentation and with the operator or integrator. Core size, roll diameter, web width, roll weight, and unwind direction can all determine whether the roll loads, feeds, and dispenses correctly.
Core and roll limits
Core inside diameter, width, and material
Maximum finished-roll outside diameter and weight
Labels per roll or maximum roll length
Acceptable winding tension and roll telescoping limits
Rolls per case and any packaging or identification requirements
Unwind direction
Specify whether labels face inward or outward and which edge leads as the web feeds. For automatic application, use the equipment supplier's unwind convention or an approved diagram showing the printed image, roll face, and feed direction.
Hand application may allow more flexibility, but recording unwind direction still prevents inconsistent repeat orders and awkward dispensing.
Match the Label to Printing and Sensing
Print method
Preprinted labels carry fixed graphics or text produced before delivery. Define colors, copy, coatings, variable fields, and finishing requirements.
Direct thermal labels use a heat-sensitive facestock and do not require a ribbon. Exposure to heat, light, abrasion, chemicals, and required image life should be evaluated.
Thermal transfer labels use a ribbon. Facestock, coating, ribbon chemistry, printer energy, speed, and durability requirements must be qualified together; a ribbon described only as wax, wax-resin, or resin is not a complete compatibility decision.
Media sensing and registration
The printer or applicator must identify where one label ends and the next begins. Depending on the device and media, registration may use:
A gap or web detected by a transmissive sensor
A black mark detected by a reflective sensor
A notch or hole at a defined position
Continuous media controlled by length rather than individual die-cut labels
Record the mark, gap, or notch dimensions and its location relative to the sensor path. Confirm the device's supported media specifications rather than assuming one format works across printers.
Select the Facestock, Adhesive, and Liner as a System
These components interact. A durable facestock does not compensate for the wrong adhesive, and a suitable adhesive does not ensure reliable dispensing from an incompatible liner.
Facestock
Paper can suit many indoor and short-duration uses. Film or other synthetic facestocks may be considered when moisture, tearing, abrasion, conformability, transparency, or extended exposure matters. Coatings and topcoats affect print compatibility and durability.
Adhesive
Define whether the label must be permanent, removable, repositionable, cold-temperature capable, or designed for a difficult surface. Separate the temperature at application from the temperatures encountered afterward. Test adhesion on the actual surface after realistic cleaning, filling, storage, and handling.
Release liner
Liner material, thickness, stiffness, release level, transparency, and die-cut quality can affect sensing, waste removal, bending around a peel plate, and high-speed dispensing. Automatic applications may require tighter controls than hand-applied labels.
Document Artwork, Variable Data, and Verification
Separate what is preprinted from what will be added at the point of use. Provide approved artwork, color targets, type requirements, bleed and safe areas, coatings or laminates, sequential numbering rules, and the location of variable fields.
For barcodes and machine-readable symbols, define the symbology, encoded data, size, orientation, quiet zones, print contrast, verification grade or acceptance method, and scanning conditions. Verify finished labels after they are printed and applied to the actual package or product; curvature, seams, texture, color, and clear films can change scanning performance.
Regulatory, safety, transport, and compliance markings should be reviewed by the responsible compliance authority. Do not assume that a familiar symbol, color, or label format is correct for every product, mode of transport, destination, or jurisdiction.
Qualify the Label Before Full Production
A data sheet narrows the options; it does not reproduce the complete application. Request material samples or a trial roll, then test with the production printer or applicator, actual surface, normal operating speed, expected environment, and real handling process.
Define acceptance criteria before the trial. Evaluate feeding, sensing, dispensing, print quality, scan performance, application accuracy, adhesion, removability when required, durability, and operator handling. Record the approved construction and supplier item, then control changes to facestock, adhesive, liner, tooling, ribbon, artwork, and roll configuration.
Complete Roll Label Specification Checklist
Use this as the information-gathering list for a quote, sample request, or internal label standard.
Application
Purpose; actual substrate; surface condition; application method and speed; application and service temperatures; moisture, chemical, abrasion, UV, and handling exposure; required service life; removal requirement.
Label and web
Finished width and length; feed direction; shape and corner radius; web width; margins; pitch and gap; number across; slit or perforation requirements; dimensional tolerances.
Equipment and roll
Printer, dispenser, or applicator make and model; print method; ribbon when used; sensing method and sensor position; core dimensions; maximum roll diameter and weight; unwind direction; labels per roll; rolls per case.
Construction and content
Facestock; adhesive; liner; colors; fixed and variable data; barcode requirements; finish or overlaminate; artwork revision; proof approval; trial results; acceptance criteria; approved supplier item and change-control record.
Roll Label Specification Questions
Is label size enough to request a quote?
No. Size and quantity are only a starting point. The supplier may also need the application, surface, environment, print method, equipment, sensing method, material construction, core, roll diameter, unwind direction, artwork, and performance requirements.
How do I identify the correct unwind direction?
Use the printer or applicator documentation and provide a drawing that shows whether labels face in or out, which edge leads, and how the printed image is oriented. Do not rely on descriptive terms alone when automatic application is involved.
Can one permanent adhesive work on every surface?
No. Surface chemistry, texture, contamination, curvature, application temperature, dwell time, and service conditions all influence adhesion. Test the proposed construction on the actual surface under representative conditions.
When is a production trial necessary?
A trial is especially important for new equipment, automatic application, difficult surfaces, harsh environments, barcode-critical uses, high operating speeds, or changes to the material construction. The trial should use realistic production and storage conditions.
